Bulldozer Track Assembly

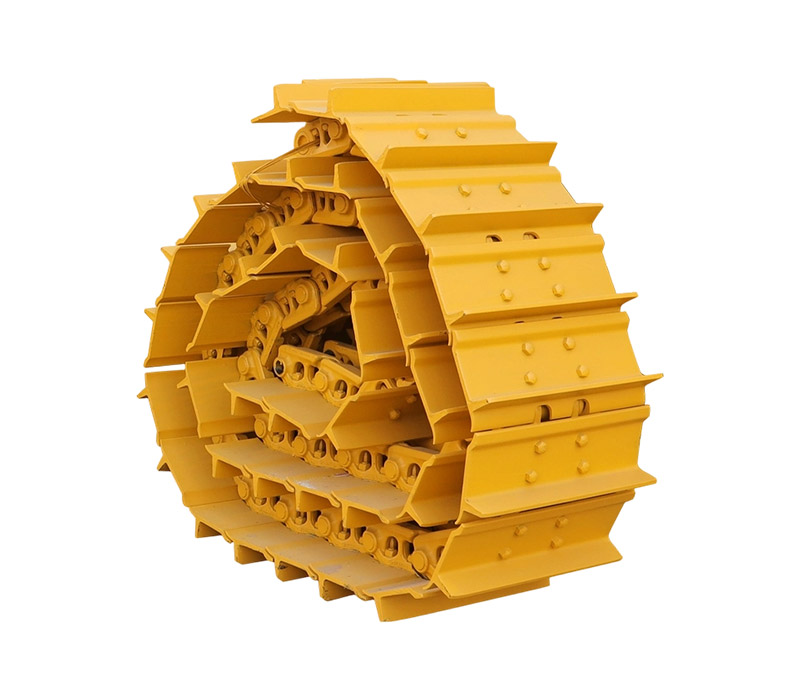

Track assemblies—components of a bulldozer’s undercarriage system—are critical elements whose design and performance directly influence the equipment’s traction, stability, and service life. A track assembly primarily consists of components such as track shoes, track links, and track pins; among these, the track shoe is the core wear-prone component.

Structure and Types of Track Shoes
Based on their ground-contact profile, track shoes are primarily classified into three types: single-grouser, triple-grouser, and flat-bottom.
Single-grouser track shoes, characterized by their tall grousers (lugs), provide powerful traction and are predominantly used on bulldozers and tractors.
Triple-grouser track shoes are commonly found on excavators; they feature two mud-ejection holes that automatically clear accumulated silt from the track links as the track rotates around the drive sprocket.
Flat-bottom track shoes possess a large ground-contact area and exert low ground pressure; they are suitable for operating conditions—such as in swamps or agricultural fields—where ground protection and minimized sinking are required.

In terms of materials, track shoes are broadly categorized into rolled steel types and cast steel types.
The single-grouser track shoes commonly used on bulldozers are typically manufactured from rolled structural steel, utilizing materials such as 25MnB alloy steel; following heat treatment, they achieve a hardness range of HB364–444. Additionally, cast “triangular shoes” are available for use in specialized operating environments, such as wetlands. To enhance durability, some track shoes now utilize low-alloy high-strength steels (e.g., 30SiMnMoV(Ti)) as a substitute for traditional high-manganese steels, thereby mitigating issues such as premature cracking and lug deformation.

Track Configurations for Specialized Operating Conditions
For specialized operating environments—such as swamps or pipeline construction sites—the use of widened, lengthened, or flat-bottom track shoes is necessary to reduce ground pressure and turning resistance, thereby protecting the ground’s surface layer. Swamp-specific track shoes exceeding 700 mm in width are often designed with a rolled steel hollow structure to enhance bending strength; furthermore, their ends are typically tapered to minimize the bending moments generated by edge loading. These ultra-wide track shoes (exceeding 800 mm in width) are generally intended exclusively for swamp applications and are not recommended for use in standard operating environments.
