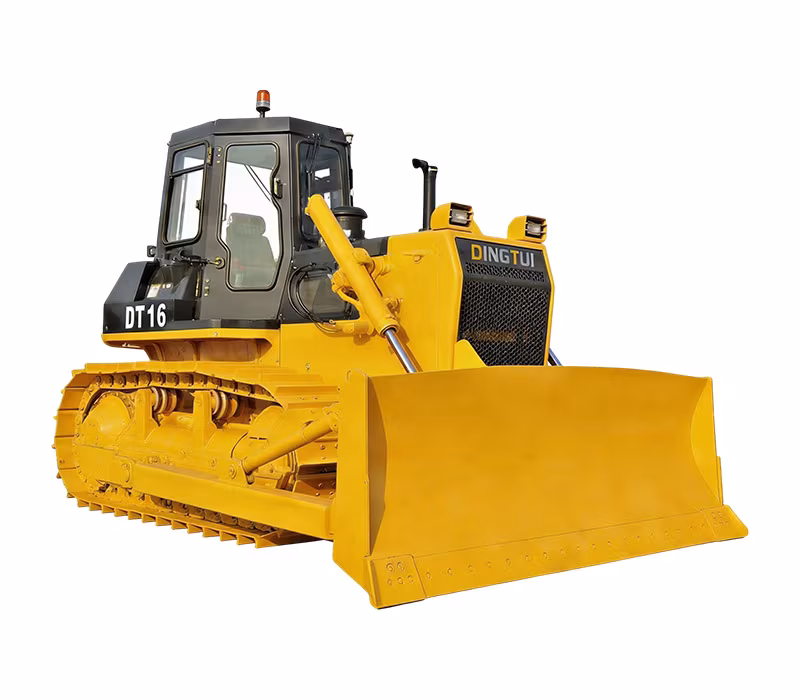

DT16 Hydraulic Dry-Land Bulldozer
DT16 Hydraulic Dry-Land Bulldozer
Features ultra-wide triangular track shoes (up to 1100mm in width) and an extended ground contact length (3140mm). This significantly reduces ground pressure (to a minimum of 23kPa), effectively preventing the machine from sinking into soft terrain and ensuring stable travel and operation.
High Durability
Built with high-strength materials to ensure long service life in harsh working environments.
Easy Maintenance
User-friendly design and accessible components make maintenance and servicing more efficient.
Wide Compatibility
Spare parts are widely compatible, ensuring easy replacement and seamless integration.
DT16 Hydraulic Dry-Land Bulldozer Product Overview
Overview of Hydraulic Dry-Land Bulldozer DT16
The DT16 Hydraulic Dry-Land Bulldozer is a crawler-type machine designed for soft ground environments with low bearing capacity and high moisture content. It is engineered to maintain stable traction, reliable hydraulic performance, and efficient earthmoving capability under challenging terrain conditions.
The Hydraulic Dry-Land Bulldozer integrates structural reinforcement and optimized hydraulic control to ensure consistent operation in wetlands, marshlands, riverbanks, and other unstable working areas. It is widely used in infrastructure preparation and large-scale land development projects.
Core Operational Scenarios
The Hydraulic Dry-Land Bulldozer is designed for multi-terrain adaptability, especially in soft soil and water-rich environments.
Wetlands and Marshland Construction
It is suitable for land leveling, excavation, and backfilling in swampy and muddy regions, helping create stable ground conditions for subsequent engineering work.
Riverbank and Lakeside Engineering
This machine supports embankment construction, river channel correction, and slope shaping in wet and slippery river and lake environments.
Soft Soil and Environmental Treatment
It efficiently handles silt, loose soil, and overgrown terrain, making it suitable for landfill covering and ecological restoration projects.
Complex Terrain Auxiliary Work
With strong traction and stability, it also supports road construction and land leveling in mountainous, hilly, and active construction zones.
Key Performance Advantages
Exceptional Wetland Mobility
The DT16 is equipped with ultra-wide 1100mm track shoes and an extended ground contact length of up to 3140mm. This design reduces ground pressure to as low as 23kPa, preventing sinking and ensuring stable operation on soft terrain.
Powerful Hydraulic and Engine System
The Hydraulic Dry-Land Bulldozer is powered by a WP10 electronically controlled engine with 131kW rated output, compliant with National III emission standards. It provides strong power output with improved fuel efficiency and environmental performance.
The transmission system includes five forward and four reverse gears, ensuring strong traction force and stable operational performance.
Specialized Wetland Blade Design
The blade adopts a high width-to-height ratio structure, improving soil handling efficiency. With a capacity of 3.8m³, it is ideal for large-scale earthmoving in wetland and soft soil conditions.
Operator Comfort and Safety
The cab provides wide visibility and can be equipped with optional FOPS/ROPS protection structures. LED work lights are available for improved safety during night operations.
High Reliability and Easy Maintenance
The chassis system is designed for harsh working conditions. Key maintenance points are externally arranged, filters are centrally grouped, and hinged side guards allow easy access, reducing downtime and maintenance costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Weight | 18,400 kg (without ripper) |
| Engine Model | Weichai WD10G178E25 (China Stage II) |
| Rated Power | 131 kW / 1850 rpm |
| Flywheel Power | 131 kW (≈178 HP) / 1850 rpm |
| Net Power | 120 kW (≈163 HP) / 1850 rpm |
| Ground Pressure | 23–25 kPa |
| Overall Dimensions | 5262 × 4150 × 3074 mm |
| Forward Speed | 0–3.29 / 5.82 / 9.63 km/h |
| Reverse Speed | 0–4.28 / 7.59 / 12.53 km/h |
| Track Shoe Width | 1100 mm |
| Ground Contact Length | 2935–3140 mm |
| Blade Type | Straight Tilt Blade |
| Blade Capacity | 3.8 m³ |
| Max Digging Depth | 495 mm |
Application Value of Hydraulic Dry-Land Bulldozer
The Hydraulic Dry-Land Bulldozer provides strong value in engineering projects requiring stable operation on soft and unstable ground. Its hydraulic system ensures precise control, while the reinforced structure improves durability under continuous heavy-duty use.
It is widely applied in construction engineering, mining support, environmental restoration, and land reclamation projects where reliability and efficiency are essential.
Conclusion
The DT16 Hydraulic Dry-Land Bulldozer is a high-performance machine designed for complex terrain conditions. With its low ground pressure design, strong hydraulic system, powerful engine, and specialized wetland capability, it delivers stable and efficient performance across a wide range of construction applications.
We provide professional Hydraulic Dry-Land Bulldozer solutions to support global engineering projects with reliable quality, long service life, and consistent operational efficiency.
